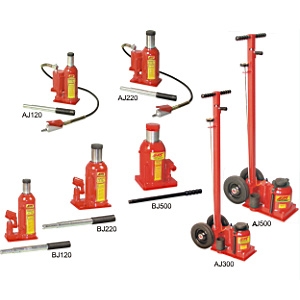

JTC-AJ120 貨車油壓千斤頂
產品介紹
• Low profile design for most of industrial applications.
• Forging base as the strongest construction to catch the needs in industry market.
• Housing welding onto the forged base makes to be free of leakage problem as well.
• Telescopic design of AJ300 & AJ500 reaches the extra needed during operating to save
time and labor cost much.
• Telescopic design of AJ120;AJ220;AJB1527 and AJB2035 reaches the extra height during
operation to save time and costs.
• AJB1527;AJB2035;AJB300 and AJB500 equipped with two large Dia. Rubber wheels provide
the greatest convenience and mobility you need.
• Air / Hydraulic design make you free pumping handle also with the most efficiency and time saving.

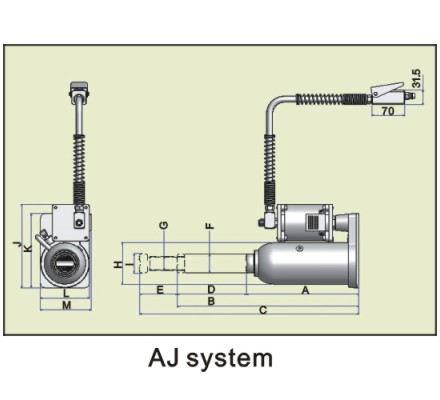

ITEM |
CAPACITY |
A |
B |
C |
D |
E |
F |
G |
HOSE LENGTH |
HANDLE LENGTH |
AUXILIARY |
AJ120 |
12TON |
241 |
389.5 |
469.5 |
148.5 |
80 |
39.95 |
29.5 |
5' |
630 |
- |
AJ220 |
22TON |
240.5 |
369.5 |
449.5 |
129 |
80 |
56 |
29.5 |
5' |
630 |
- |
AJ300 |
30TON |
279 |
441 |
- |
162 |
- |
65 |
- |
5' |
630 |
- |
AJ500 |
50TON |
304 |
475 |
- |
171 |
- |
75 |
- |
5' |
630 |
- |
ITEM |
CAPACITY |
H |
I |
J |
K |
L |
M |
HOSE LENGTH |
HANDLE LENGTH |
AUXILIARY |
AJ120 |
12TON |
89 |
42 |
180 |
160 |
105 |
107 |
5' |
630 |
- |
AJ220 |
22TON |
114 |
42 |
205 |
185 |
130 |
132 |
5' |
630 |
- |
AJ300 |
30TON |
140 |
- |
235 |
- |
- |
- |
5' |
630 |
- |
AJ500 |
50TON |
163 |
- |
260 |
- |
- |
- |
5' |
630 |
- |
